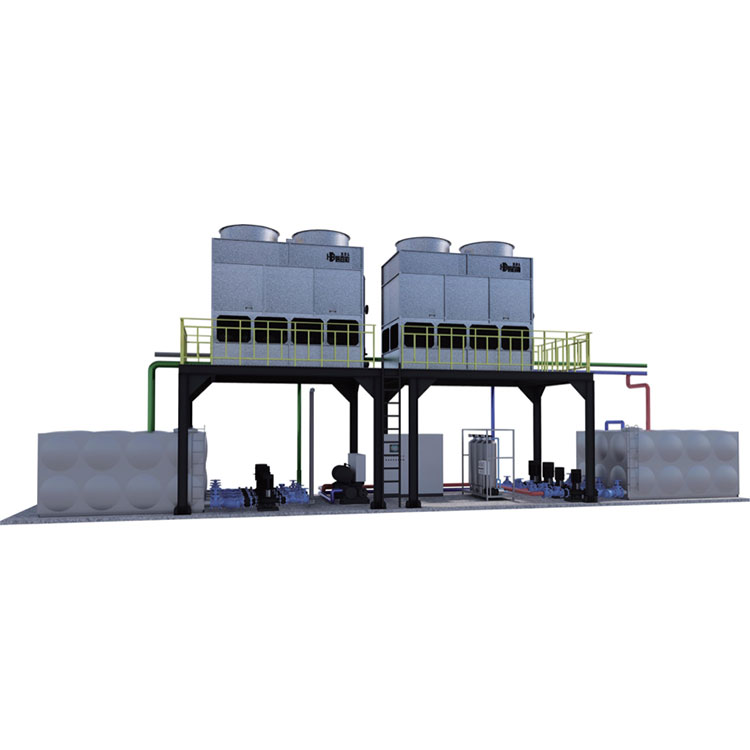

Plastic Central Water Cooling System

Sinburller® is a leading China plastic central water cooling system manufacturer. The Plastic Central Water Cooling System undergoes three treatments for water ingress. Adopting stainless steel water tank, the metal is not prone to microorganisms, the sealing is not easy to attract dust and impurities, and it is flush with the ground for easy cleaning and drainage. Replace the open cooling tower with a closed cooling tower, and circulate the entire return water in the coil type cooler, then use indirect cooling.

Details：

The Plastic Central Water Cooling System has undergone three treatments for the incoming water, avoiding problems such as scaling and rusting caused by poor water quality.

The Plastic Central Water Cooling System uses a stainless steel water tank, which is made of metal that is not prone to microbial growth, has good sealing properties that prevent dust and impurities from entering, and is flush with the ground for easy cleaning and drainage.

The Plastic Central Water Cooling System replaces the open cooling tower with a closed cooling tower, where the entire return water circulates in a coil type cooler and is cooled indirectly.

Features：

● Closed cooling tower combined with three-level water treatment ensures clean water quality, and mold flow channels do not scale

● The Plastic Central Water Cooling System adopts surrounding waterway, balanced inlet pressure, no pump suction pressure of 0.0KG for return water, designed flow rate of 3m/s

● Height difference, workshop enclosed waterway, gravity flow (the siphon effect is good when the return water pipeline is gradually enlarged)

● One pump produces the effect of two pumps, and the energy consumption is 0.5 pumps

● Product process standardization, stable quality, and fast production

● Compressed air flows from the inlet pipe to the mold and then out from the return pipe to clean the moisture inside the mold

● Real time observation of water flow changes in the channel holes, equipped with a channel blockage prevention warning system, which can be connected to computers and mobile phones through MES big data

● Energy saving start and stop of small auxiliary pumps and cooling towers (not started for three quarters), adjustable start and stop temperature, saving approximately 50% to 70% of energy consumption per year

●The Plastic Central Water Cooling System adopts humanized design interface, simple and easy to operate; The pressure can be automatically adjusted according to the required power; System malfunction, water pump automatically switches and issues an alarm
