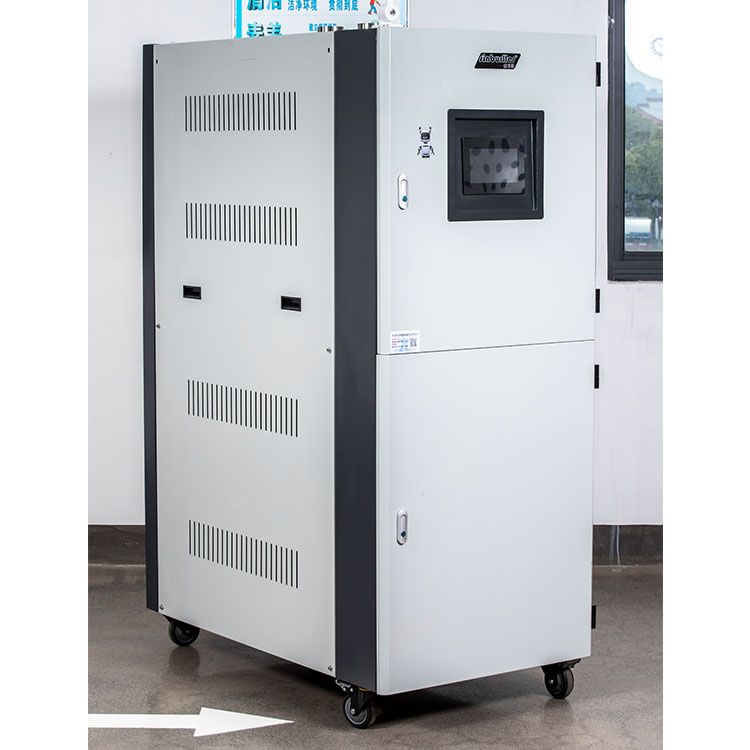

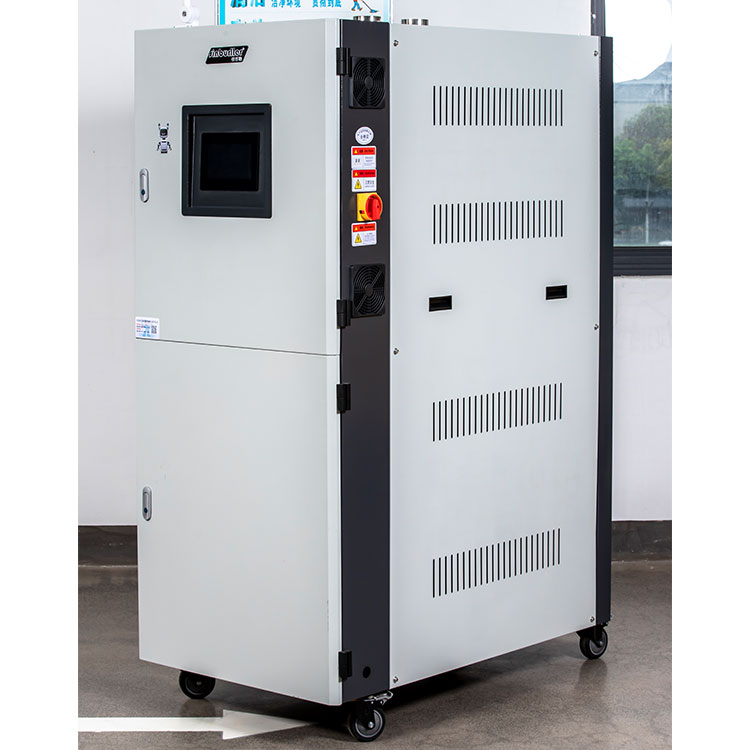

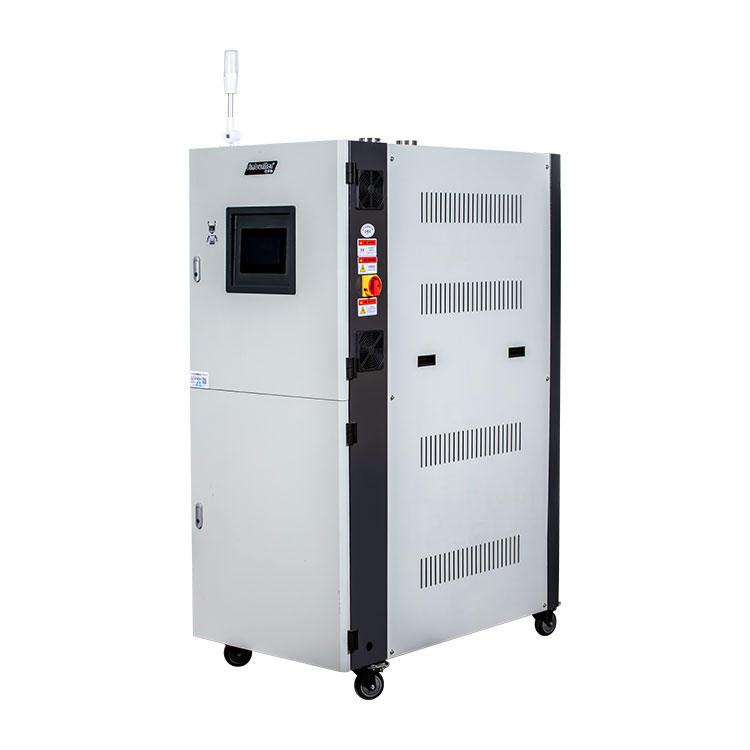

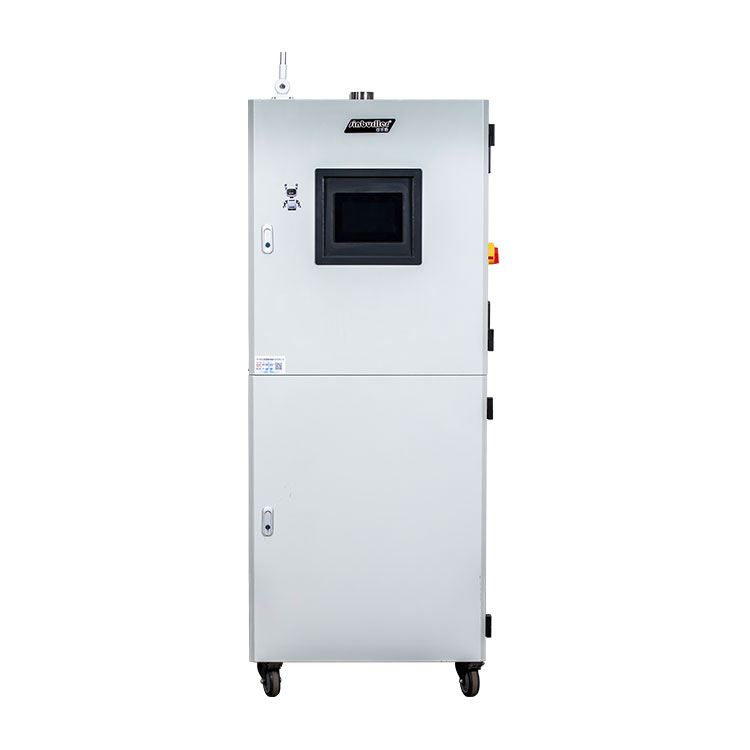

Sinburller® is honeycomb dehumidifier manufacturer and supplier in China who can wholesale honeycomb dehumidifier. The X-CD series honeycomb dehumidifier is mainly used for drying and absorbing engineering plastics. Honeycomb rotors are used in this series to provide effective drying. Honeycomb motors can provide dehumidified dry air with a dew point as low as -40 ° C. The X-CD series provides accurate P I. D. Temperature. This series includes 12 models of cellular dehumidifiers, with a maximum capacity of up to 1500 m3/hr for providing dry air.
| Machine type X-CD | 40H | 90H | 120H | 150H | 200H | 300H | 400H | 500H | 600H | 800H | 1000H | 1500H | |
| Regenerative heating power | (kw) | 3 | 3.5 | 3.5 | 4 | 4 | 5.4 | 7.5 | 10 | 10 | 12 | 15 | 20 |
| Regenerative fan power | (kw) | 0.18 | 0.37 | 0.37 | 0.55 | 0.55 | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 | 2.2 | 3.0 |
| Drying fan power |
(kw) |
0.55 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 3.0 | 3.0 | 3.8 | 5.5 | 7.5 | 11 |
| Dry air volume | (m3/hr) | 40 | 90 | 120 | 150 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 | 1500 |
| Inlet and outlet pipe diameter | (inch) | 2 | 2 | 2 | 2 | 2.5 | 2.5 | 3 | 3 | 3 | 4 | 4 | 5 |
| Cooling water demand | (L/min) | 5 | 15 | 15 | 20 | 30 | 40 | 50 | 80 | 120 | 180 | 240 | 180 |
| External size | H(mm) | 1260 | 1360 | 1360 | 1360 | 1560 | 1560 | 1745 | 1745 | 1745 | 1935 | 1935 | 2060 |
| W(mm) | 510 | 530 | 530 | 530 | 660 | 660 | 700 | 700 | 700 | 900 | 900 | 1410 | |
| D(mm) | 860 | 820 | 820 | 820 | 1050 | 1050 | 1255 | 1255 | 1255 | 1380 | 1380 | 2150 | |
| Net weight | (kg) | 145 | 170 | 170 | 220 | 280 | 320 | 420 | 480 | 700 | 1010 | 1300 | 1550 |
●The dehumidification system is equipped with cooler to ensure lower return air temperature and dew point. Standard equipped dew point detection, the dew point can reach -40℃ .
●The dehumidifier equipped with return air filter, ensure honeycomb is not polluted by raw material dust, so as to increase service life.
●The dehumidifier adopt molecular sieve honeycomb , can provide stable low dew dry air, and will not be polluted by aging molecular sieve like double barrel dehumidifier of raw materials.
alarm system : full fuction alarm system,can immediately reflect failure problems
dehumidifying system :Adopt molecular sieve honeycomb , can provide stable low dew dry air, and will not be polluted by aging molecular sieve like double barrel dehumidifier of raw materials
control system : the machine is adopted with the LCD touching screen control panel
