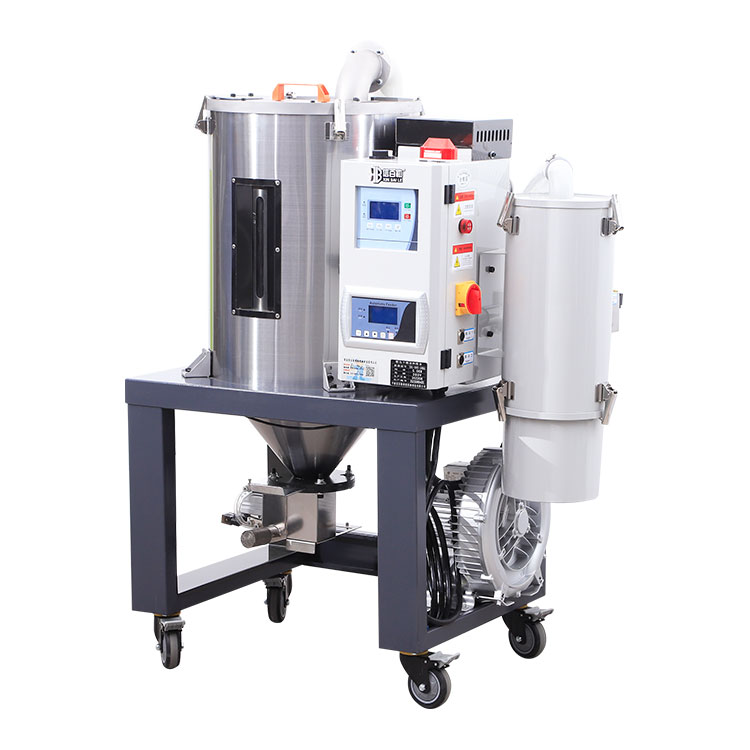

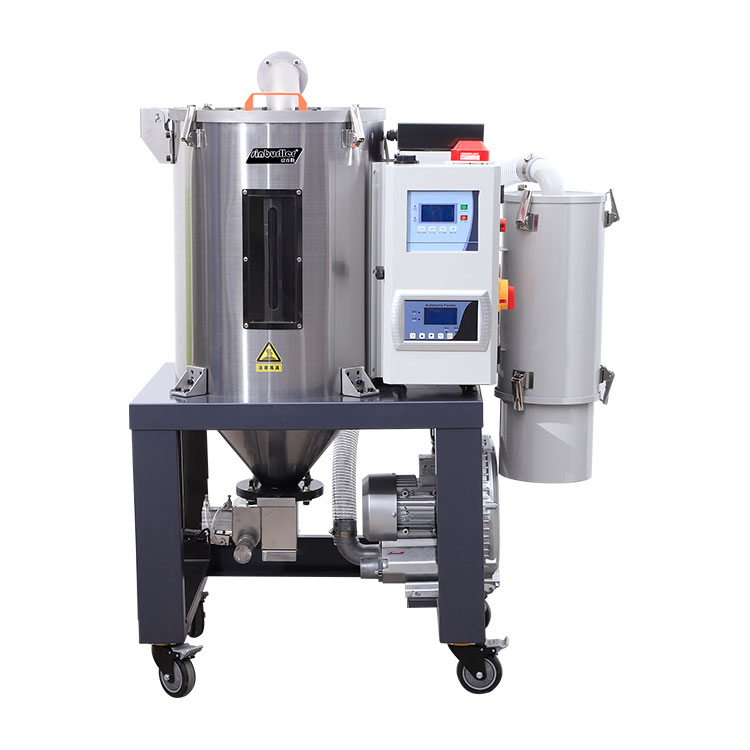

As a professional high quality euro-hopper dryer manufacturer, you can rest assured to buy euro-hopper dryer from Sinburller® and we will offer you the best after-sale service and timely delivery. The X- DL series Euro Feeder-Dryer is made of stainless steel and equipped with a "hot air down blowing" and double-layer insulated bucket. It is particularly suitable for use with dehumidifiers to dry engineering plastics and plastics with high moisture content. This series Euro Feeder-Dryer can provide a loading capacity ranging from 40U to 1200U and is divided into 11 models.
Good thermal insulation performance:Double layer stainless steel, thickened insulation design, sealed barrel body without contact with external air, saving more than 30% of electricity, high efficiency, and no heat dissipation.
alarm system : full fuction alarm system,can immediately reflect failure problems
control system : Our Euro Feeder-Dryer is adopted with the LCD touching screen control panel
●Our Euro Feeder-Dryer integrated two-stage feeding and drying functions
●Small footprint, convenient mobility, and the ability to easily replace machines for use
●Stainless steel made is adopted in raw material contact parts, to ensure raw material is not to be polluted
●Full function alarm system, can immediately reflect failure problem
●Double layer insulation structure ensures uniform temperature and minimal heat loss
●Maximum drying temperature can reach 160°C
| Machine type X-DL | 40U | 80U | 120U | 160U | 230U | 300U | 450U | 600U | 750U | 900U | 1200U | |
| Drying fan power | (kw) | 0.12 | 0.12 | 0.12 | 0.12 | 0.12 | 0.18 | 0.18 | 0.55 | 0.55 | 0.55 | 1.1 |
| Feed fan power | (kw) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 3.75 | 3.75 |
| Heating box power | (kw) | 3 | 3.9 | 3.9 | 6 | 6 | 12 | 12 | 18 | 18 | 18 | 24 |
| Traffic demand | (m³/min) | 0.1 | 0.23 | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 | 1.0 | 1.3 |
| Inlet duct | (inch) | 2 | 2 | 2.5 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 |
| Return duct | (inch) | 2 | 2 | 2.5 | 2.5 | 3 | 2.5 | 2.5 | 3 | 3 | 4 | 4 |
| Suction tube | (inch) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2 | 2 |
| Drying hopper capacity | (L) | 40 | 80 | 120 | 160 | 230 | 300 | 450 | 600 | 750 | 900 | 1200 |
| Electric eye hopper | (L) | 3 | 6 | 6 | 6 | 12 | 12 | 12 | 12 | 12 | 24 | 24 |
| Vacuum hopper | (L) | 3 | 6 | 6 | 6 | 12 | 12 | 12 | 12 | 12 | 24 | 24 |
| Extemal size | H (mm) | 1081 | 1097 | 1159 | 1159 | 1159 | 1400 | 1400 | 1960 | 1960 | 1960 | 1960 |
| W(mm) | 841 | 841 | 841 | 841 | 841 | 1000 | 1000 | 1450 | 1450 | 1450 | 1450 | |
| D(mm) | 1685 | 1771 | 1957 | 2102 | 2102 | 2020 | 2420 | 2450 | 2720 | 2610 | 3030 | |
| Net weight | (kg) | 120 | 130 | 195 | 215 | 240 | 310 | 350 | 435 | 500 | 550 | 600 |
