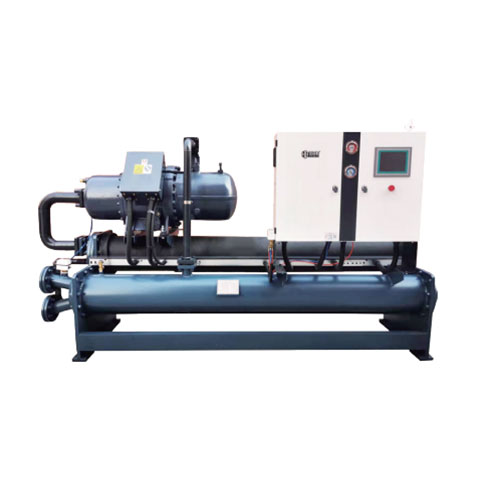

Screw Chiller

Find a huge selection of screw chiller from China at Sinburller®. The screw chiller uses a brand name semi-closed double screw compressor with long bearing life to ensure long time operation, and is equipped with a high efficiency motor to make the compressor compressor more efficient. The compressor is non-stage adjustable, which can realise continuous adjustment of the cooling capacity anywhere between 25%-100% to achieve stable energy output control. RS485 communication function is standard, which can achieves real-time control and monitoring of the unit. Equipped with fault query function and fault statistics function to analyse the causes of faults according to the fault serial number, the number of faults and the time of occurrence so as to improve. Equipped with high and low pressure switch, flow switch, fusible links, overload protection device, coil overheating protection device, exhaust temperature overheating protection, cooling water, temperature overheating and temperature difference protection.

Details of Screw Chiller:

1.Branded semi-closed type double screw compressor: Long bearing life ensures long time operation, equipped with high efficiency motor to make the compressor more efficient.

2.Infinitely adjustable compressor: It can continuously adjust the cooling capacity anywhere between 25%-100% to achieve stable energy output control.

3. Standard RS485 communication function: real-time control and monitoring of the unit can be achieved.

4. Fault query function and fault statistics function: the causes of faults can be analysed according to the fault serial number, the number of faults and the time of occurrence, so as to improve the situation.

5. Various protection devices: Standardly equipped with high and low pressure switches, flow switches, fusible links, overload protection devices, coil overheating protection devices, exhaust temperature overheating protection, cooling water, and overheating protection devices.

Features of Screw Chiller

●The famous brand semi-closed double screw compressors, with long bearing life, ensures long time running. Equipped with highly effective engine makes a higher compressing efficiency of compressor

●Compressor is s tepless regulation, achieves continuous adjustment in any location of refrigerating capacity between 25% to 100%, reaching stable energy output control

●Standard equipped with RS485 communication function, achieves real-time control and monitor of the unit

●Fault inquiry function and fault statistical function can analyze reasons of faults according to fault No., fault times and happening time, so as to improve

●Equipped with high and low voltage switches, flow switches, fusible plugs, overload protection devices, coil overheating protection devices, exhaust temperature high protection, cooling water temperature high and large temperature difference protection, etc

Parameter
