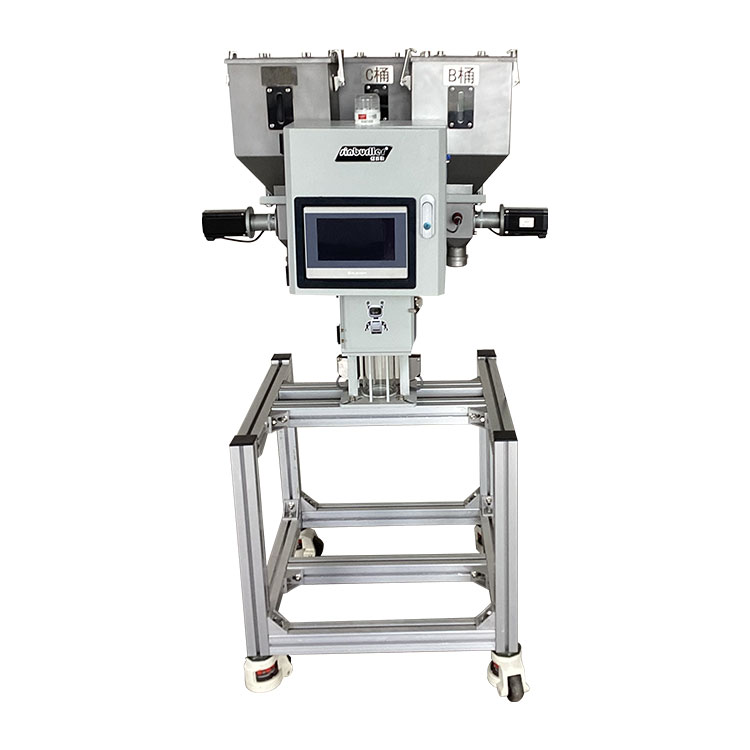

Sinburller® is one of prominent manufacturer, producer, and exporter of volumetric proportional mixer in China. The volumetric proportional mixer measuring at the same time without stirring, mixing at the same time as measuring; raw materials separated by specific gravity differences can be fully mixed; raw materials with different particle sizes and shapes can also be fully mixed. The machine uses mixing without stirring, thus avoiding the static electricity generated by material stirring, which causes colour spots on the product. Dust caused by mixing can be completely eliminated and recipes can be stored, making it easy to store and recall recipes. The machine can detect the overload of raw material blockage and will automatically shut down for protection and alarm.
1.Simultaneous Measurement: No need to stir, mixing at the same time of measurement.
2.Mixing without stirring: avoiding the static electricity generated by stirring materials, which may cause colour spots on the products.
3. Formulation can be stored: convenient to store and call the formula.
4.Detect overloading of raw material blockage: it will automatically stop the machine for protection and alarm.
●Simultaneous measurement, no need for blending, mixing while metering
●Separated raw materials due to gravity difference can be fully mixed
●Raw materials with different granule sizes and shapes can be fully mixed
●No blender mixing, thus avoiding static electricity generated from material blundering and making products to have colored patches
●Totally eliminate the trouble of powders brought by stirring
●Recipe can be stored, convenient for storage and calling recipe
●Can detect raw material block overloading, can automatically stop the machine for protection and giving an Alarm
| Machine type | XPM-40-2 | XPM-40-3 | XPM-40-4 | |
| (mm) | Outside diameter of main/auxiliary screw | 40×1/16×1 | 40×2/16×1 | 40×2/16×2 |
| (kw) | Main/auxiliary motor power | 0.06×1/0.06×1 | 0.06x2/0.06×1 | 0.06x2/0.06×2 |
| Primary/secondary reduction ratio | 1:18×1/1:50×1 | 1:18x2/1:50×1 | 1:18x2/1:50×2 | |
| (kg/hr) | Maximum transmission capacity of single screw | 90/2 | 90/2 | 90/2 |
| (kg/hr) | Maximum handling capacity | 92 | 182 | 184 |
| (L) | Storage hopper volume | 6 | 6 | 6 |
| Low material level alarm | Standard | Standard | Standard | |
| (mm) H×W×D | Overall dimension | 880×900×500 | 880×900×800 | 880×900×900 |
| (kg) | Net weight | 66 | 78 | 90 |
