Sinburller® invites you to visit our factory to purchase the newest, best-selling, affordable, and high-quality Oil Mold Temperature Controller . We are looking forward to working with you. The Oil Mold Temperature Controller can be used at a maximum temperature of 200°C or 300°C. The high temperature oil machine uses a magnetic drive pump, and its inner part is made of stainless steel, which is high pressure explosion-proof and not easy to leak. Equipped with power reverse protection, pump overload protection, over-temperature protection, low liquid level protection and other safety measures, when a fault occurs, the machine can automatically detect the abnormality and alarm prompts. We adopt digital segmented temperature control system, in any operating conditions can maintain a stable mould temperature, temperature control precision ± 0.5 ° C and equipped with RS485 communication interface, can communicate with the host to achieve centralized monitoring.

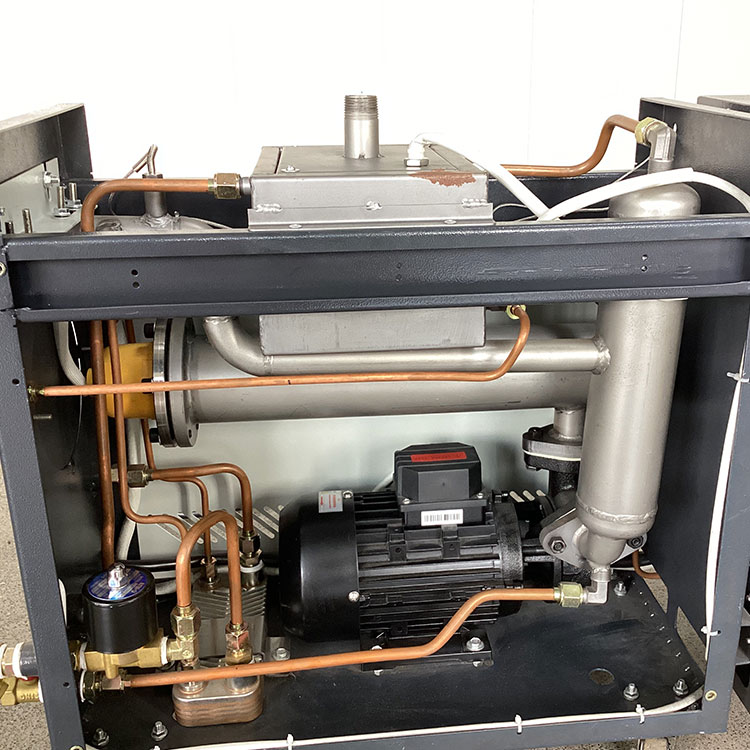

1.Magnetic drive pump: the internal part is made of stainless steel, high pressure explosion-proof and not easy to leak.
2. Configured with a number of safety measures: power reverse protection, pump overload protection, over-temperature protection, low liquid level protection, etc., when a failure occurs, the machine can automatically detect the abnormality and alert the police.
The machine can automatically detect the abnormality and alarm prompts.
3. Full digital segmented temperature control system: can maintain stable mould temperature under any operating condition, temperature control precision ±0.5°C.
4.RS485 communication interface: can communicate with the host to achieve centralized monitoring.
●Maximum service temperature 200ºC or 300ºC
●The pump is driven by magnetic force, and its interior is made of stainless steel, which is high-pressure explosion-proof and not prone to leakage
●Equipped with multiple safety measures like power supply reverse protection, pump overload protection, over temperature protection, low liquid level protection etc. When there is trouble, the machine can automatically detect the abnormal and give an alert
●Adopt full digital segmented temperature control system, can maintain stable mold temperature under any operating conditions, with temperature control accuracy ±0.5°C,
●Equipped with RS485 communication interface, can communicate with the host to achieve centralized monitoring
Oil type mold temperature controller
| Machine type | XCM-6-0 | XCM-6-O(2D) | XCM-6-0 | XCM-9-O(2D) | XCM-12-0 | XCM-12-O(2D) | XCM-24-0 | XCM-24-O(2D) | |
| (℃) | Temperature range | +30-200℃ | +30-200℃ | +30-200℃ | +30-200℃ | ||||
| Temp accuracy | ±1 | ±1 | ±1 | ±1 | |||||
| (V/FH/HZ) | Source | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | ||||
| Heat transfer media | Heat transfer oil | Heat transfer oil | Heat transfer oil | Heat transfer oil | |||||
| Cooling mode | Indirect order | Indirect order | Indirect order | Indirect order | |||||
| (kw) | Heating power | 6 | 6+6 | 9 | 9+9 | 12 | 12+12 | 12+12 | (12+12)x2 |
| (kw) | Pump power | 0.37 | 0.37+0.37 | 0.75 | 0.75+0.75 | 1.5 | 1.5+1.5 | 2.2 | 22+2.2 |
| (L/min) | Pump working flow | 42 | 56 | 112 | 137 | 233 | 233 | ||
| (kgf/cm²) | Pump working pressure | 2.2 | 2.8 | 2.5 | 2.7 | 3 | 3 | ||
| (inch) | Cooling water piping | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | ||
| (inch) | Circulating water piping | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | ||
| (mm) H×W×D | External size | 870x290x680 | 980x350x950 | 870x290x680 | 980x350x950 | 1030x350x720 | 1150x350x1100 | 900x470x1080 | 1420x470x1180 |
High temperature oil type mold temperature machine 300°
| Machine type | Max temperature (℃) | Heating power (kw) | Pump power (kw) | Pump working flow (L/min) | Pump working pressure (bar) | Number of heating drums | Capacity(L) | Cooling mode | Inlet/outlet dimensions(inch) |
H×W×D External size (mm) |
Net weight (kg) | |
| Main tank | Auxiliary fuel tank | |||||||||||
| XCM-12-OHP-300 | 300 | 12 | 0.55 | 25.5 | 4.8 | 1 | 6 | 7 | indirect | 3/4/3/4 | 710x390x1020 | 90 |
| XCM-18-OHP-300 | 300 | 18 | 1 | 50 | 5.8 | 2 | 9 | 12 | 1/1 | 940x430x1050 | 184 | |
