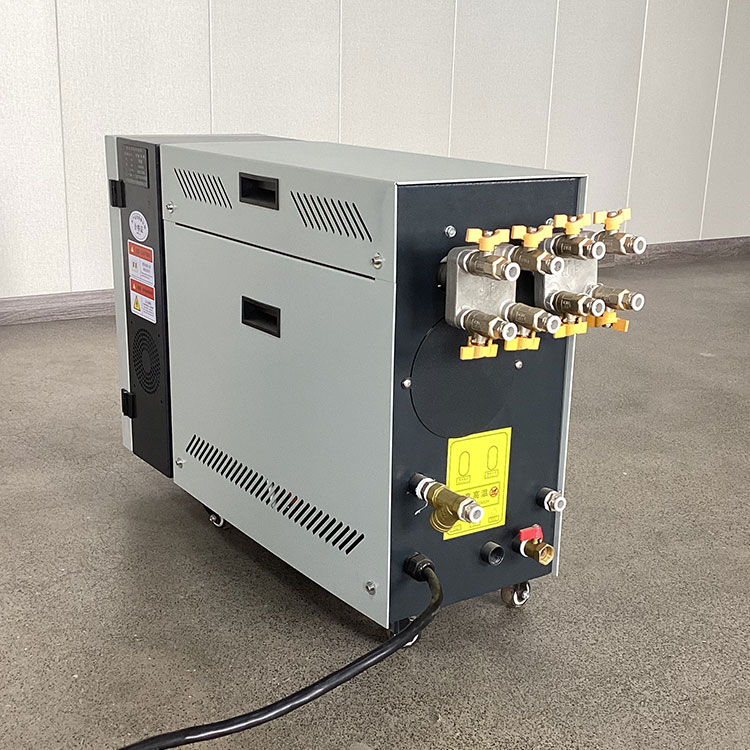

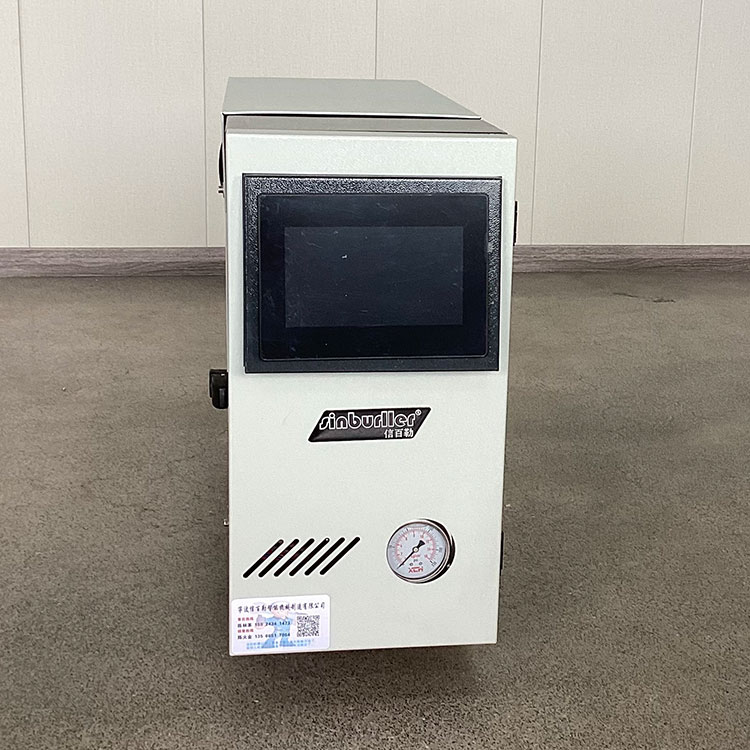

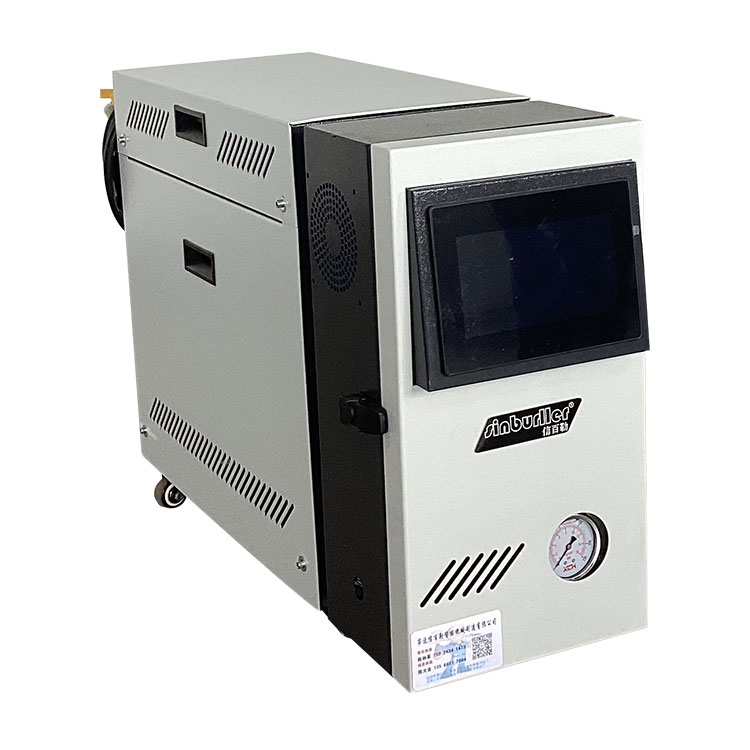

Sinburller® a reputable manufacturer in China, is willing to offer you Water Mold Temperature Controller. We promise to provide you with the best after-sale support and prompt delivery..The cooling temperature range of Sinburller Water Mold Temperature Controller is 5~35℃, equipped with stainless steel insulated water tank, with long service life and no pollution. The refrigerant adopts R22, which has good cooling effect; the cooling system adopts various kinds of precision control, which can accurately control the stability of the system. Overload protection for compressor and pump, shell and tube condenser, fast heat conduction and good heat dissipation. Adopting coil evaporator, copper tube directly coil installed in the water tank, economical and practical, and adopts the famous brand original precision temperature control table, display accuracy of ± 0.5 ° C.
Standard temperature controller 120℃
PARAMETERS
| Machine type | XCM-6-W | XCM-6-W (2D) | XCM-9-W | XCM-9-W (2D) | XCM-12-W |
XCM-12-W (2D) |
XCM-18-W | XCM-24-W | |
| Temperature range (℃) | +15-100 | +15-100 | +15-100 | +15-100 | |||||
| Temp accuracy | ±1 | ±1 | ±1 | ±1 | |||||
| Source (V/FH/HZ) | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | |||||
| Heat transfer media | Water | Water | Water | Water | |||||
| Cooling mode | Direct cooling | Direct cooling | Direct cooling | Direct cooling | |||||
| Heating power(kw) | 6 | 6+6 | 9 | 9+9 | 12 | 12+12 | 9+9 | 12+12 | |
| Pump power (kw) | 0.37 | 0.37+0.37 | 0.75 | 0.75+0.75 | 1.5 | 1.5+1.5 | 2 | 3 | |
| Pump working flow (L/min) | 42 | 56 | 112 | 112 | 137 | 233 | |||
| Pump working pressure (kgf/cm²) | 2.2 | 2.8 | 2.5 | 2.5 | 2.7 | 3 | |||
| Cooling water piping (inch) | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | |||
| Circulating water piping (inch) | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | 1 | |||
| Extemal size | H(mm) | 550 | 880 | 550 | 880 | 730 | 1250 | 1150 | 1150 |
| W(mm) | 300 | 340 | 300 | 340 | 350 | 400 | 470 | 470 | |
| D(mm) | 930 | 930 | 930 | 930 | 1010 | 1230 | 1230 | 1230 | |
High temperature temperature machine 150℃
PARAMETERS
| Machine type | XCM-9-WHP | XCM-9-WHP-2D | XCM-12-WHP | XCM-12-WHP-2D | XCM-18-WHP | XCM-24-WHP |
| Temperature range(℃) | +15-150 | +15-150 | +15-150 | +15-150 | +15-150 | +15-150 |
| Temp accuracy | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
| Source(V/FH/HZ) | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
| Heat transfer media | Water | Water | Water | |||
| Cooling mode | Indirect coolino | Indirect cooling | Indirect cooling | |||
| Heating power(kw) | 9 | 9+9 | 12 | 12+12 | 9+9 | 12+12 |
| Pump power(kw) | 0.75 | 0.75+075 | 1.5 | 1.5+1.5 | 2.2 | 3 |
| Pump working flow(L/min) | 60 | 60 | 90 | 90 | 90 | 188 |
| Pump working pressure(kgf/cm²) | 4 | 4 | 3.5 | 3.5 | 3.5 | 3.6 |
| Cooling water piping(inch) | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| Circulating water piping(inch) | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 |
| Extemal size(mm)H×W×D | 550×300×930 | 880×340×930 | 730×350×1010 | 1250×400×1230 | 1150×470×1230 | 1150×470×1230 |
High temperature temperature machine 180℃
PARAMETERS
| Machine type | XCM-9-WHP 180℃ | XCM-9-WHP-2D 180℃ | XCM-12-WHP 180℃ | XCM-12-WHP-2D 180℃ | XCM-18-WHP 180℃ | XCM-24-WHP 180℃ |
| Temperature range(℃) | +30-180 | +30-180 | +30-180 | +30-180 | +30-180 | +30-180 |
| Temp accuracy | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
| Source(V/FH/HZ) | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
| Heat transfer media | Water | Water | Water | |||
| Cooling mode | Indirect cooling | Indirect cooling | Indirect cooling | |||
| Heating power(kw) | 9 | 9+9 | 12 | 12+12 | 9+9 | 12+12 |
| Main pump horsepower(HP) | 0.55 | 0.55+0.55 | 1.5 | 1.5+1.5 | 2 | 3 |
| Make-up pump horsepower(HP) | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
| Pump working flow(L/min) | 60 | 60 | 90 | 90 | 90 | 188 |
| Pump working pressure(kgf/cm²) | 4 | 4 | 3.5 | 3.5 | 3.5 | 3.6 |
| Cooling water piping(inch) | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| Circulating water piping (inch) | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 |
| Extemal size(mm)H×W×D | 550×300×930 | 880×340×930 | 730×350×1010 | 1250×400×1230 | 1150×470×1230 | 1150×470×1230 |
The heating temperature of XCM-Series mold temperature controller can reach 120ºC, 150ºC, 180ºC
●With the one week timing on/off, support Chinese/English switch and C/F transfer
●Adopt segmented temperature control system, maintain stable mold temperature under any operating conditions, the temperature control accuracy reaches ±0.5°C

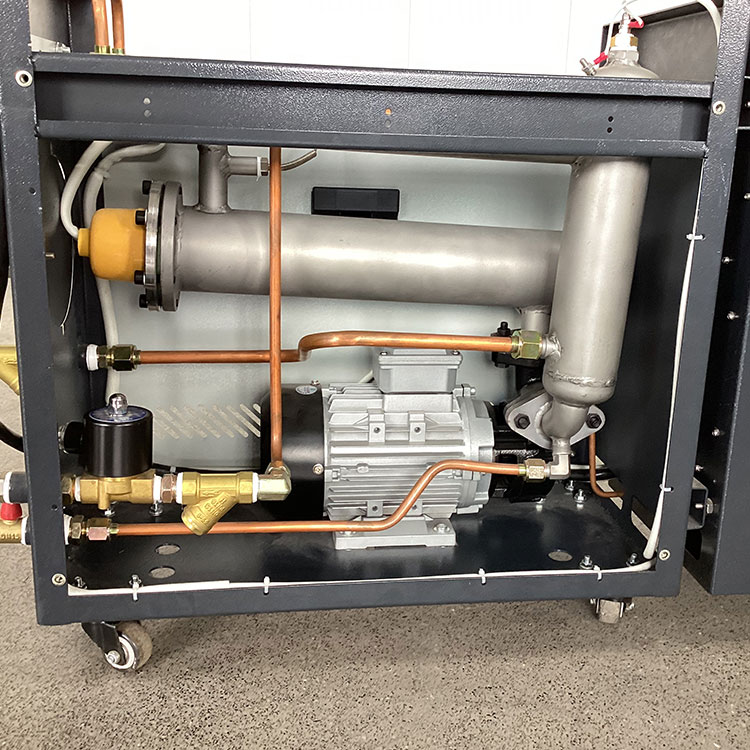

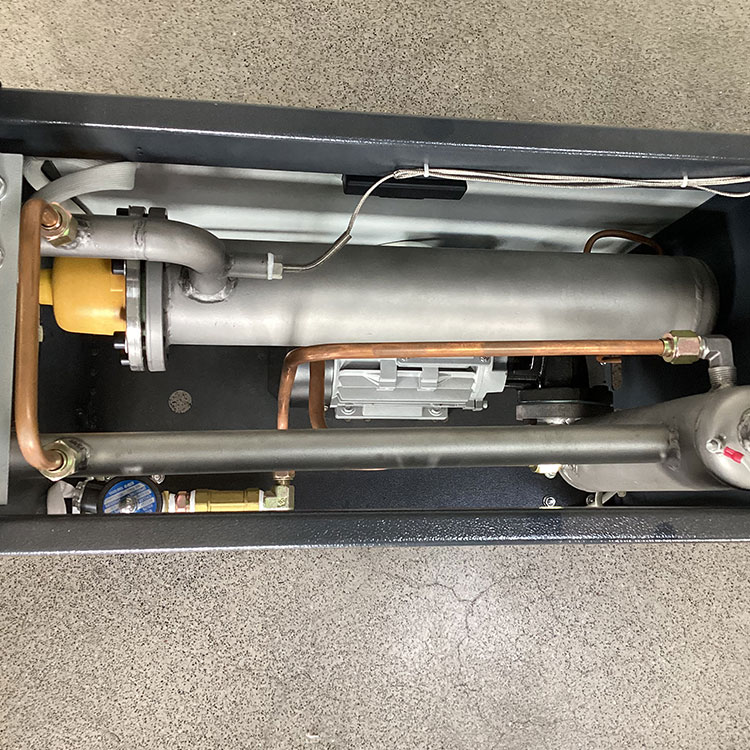

●The entire circulation pipeline is made of seamless steel and copper pipes, which have stronger resistance to high temperature and corrosion
●Equipped with various safety display and alarm devices, such as reverse phase protection, pump overload and over temperature protection, and low liquid level alarm
●Equipped with RS485 communication interface, can communicate with the host to achieve centralized monitoring
1.Segmented temperature control system: can maintain a stable mould temperature under any operating conditions, temperature control accuracy of ±0.5°C.
2. Thermostat system: the circulating pipeline is made of seamless steel and copper pipe, which is more resistant to high temperature and corrosion.
3. Built-in a variety of safety display and alarm devices, such as reverse phase protection, pump overload over-temperature protection, low liquid level alarm.
